RP DIA.500mm(20inch) 2100mm(84inch) 3TPIL Graphite Electrode

FOB Reference Price:Get Latest Price
US $7,100-10,000 / Metric Tons | 1 Metric Ton/Metric Tons (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jilin, China (Mainland)
Brand Name:
JSC
Model Number:
RP 500mm(20inch) 2100 mm(84inch) 3TPIL
Application:
EAF; Steel making; Metal smelting, steel&ferro alloy smelting, yellow phosphorus
Diameter:
500mm
Length:
2100mm
Grade:
RP (Regular Power)
Resistance (μΩ.m):
GE:8.5 GN:6.0
Apparent Density (g/cm³ ):
GE:1.54 GN:1.70
Thermal Expansion:
GE:2.90 GN:2.80
Flexural Strength (N/㎡):
GE:7.0 GN:15.0
HS code:
854511
Quality:
superior and reliable
Selling point:
trustworthy quality and competitive price
Performance:
low resistivity, high density, strong oxidation resistance
Supply capability:
guaranteed goods supply
Lead time:
guaranteed lead time
Furnace-wise:
perfectly matched for electric arc furnace and submerged arc furnace
Thirty party inspection:
LR BV DNV TUV AHK GRIFFITH ALEX STEWART SGS ETC
Size:
Dia.: 20 inch Length: 84 inch
Supply Ability
Supply Ability:
1500 Metric Ton/Metric Tons per Month
Packaging & Delivery
Packaging Details
Usually packed in wooden cages;
A 20GP container can hold:
Dia.500 * L2100mm 30 pcs
Port
Dalian, Tianjin, Jilin station ,Manzhouli and Main ports ,China.
Lead Time :
15-45 days after order placed
Production

  Production

RP Graphite Electrode

Diameter: 500mm (20”)

Length: 2100mm(84 inch)  +/-100mm(80-88 inch)
Grade: RP
Nipple: 3TPIL

Nipple Size: D298.45 * L372.60

QC Standard: ISO9001:200846.jpg



  Connection  Details


Packaging

  Packaging

photobank (1).jpg

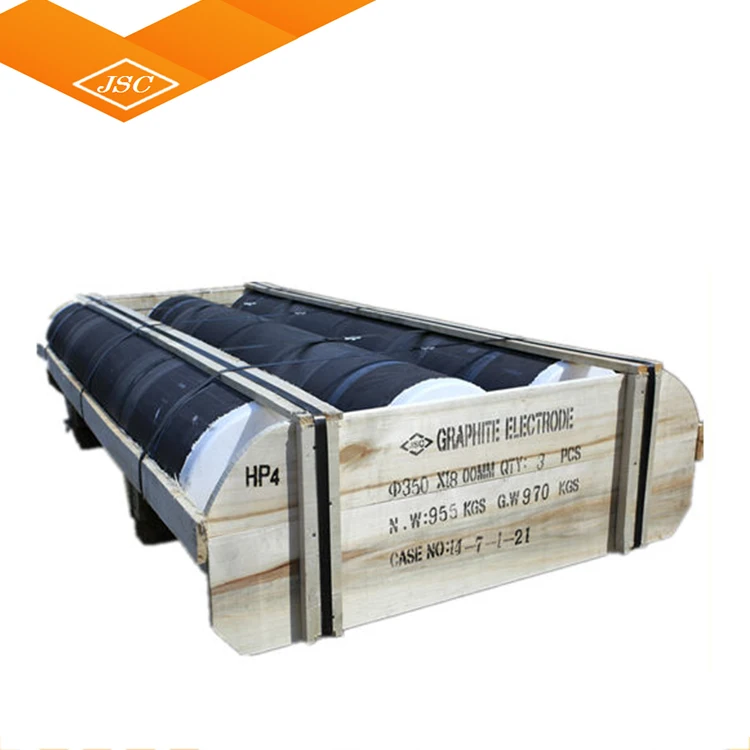

Graphite electrode is packaged by wooden cages and nipple is packaged by wooden boxes. Graphite electrode and nipple can be packaged together according to the requirements of the custmers. The products are protecte waterproof and dustproof plastic inside and fixed by steel bands which fits for land and sea transportation.

Technology



Graphite electrode is a major conduction material used in the electric smelting industry, which has the properties of superior electric conductivity, thermal conducivity, high mechanical strength, oxidation and corrosion resistance in high temperature, graphite electrodes is typically used in EAF( for smelting steel), submerged-arc furnace(for producing ferrodalloy, pure silicon, phosphor, matte, calcium carbide, etc) and electric resistance furnace, such as graphitization furnace producing graphite electrodes, glass-melting furnace, electric furnaces producing carborundum ect.









Physico-Chemical Specifications

RP DIA. 500mm(20 inch)

ItemUnitElectrodeNipple

 Resistivty
Max.

μΩm8.56.0
Bending Strength
Min.
Mpa7.015.0
Elastic Modulus
Max.
Gpa9.314.0
Bulk Density
Min.
g/cm³1.541.70
CTE
Max.
10-6/℃
(100-600℃)
2.902.80
Ash Content
Max.
%0.500.50
Note: Ash content only for reference.

Certification

  Certification

photobank (4).jpg

JLSJC fomed a strict, orderly and professional quality inspection team. JLSJC strictly controls the whole process, and all products are re-inspected strictly by experienced senior technician before being delivered to port.

  Customer Reference

 photobank (5).jpg

Company Introction

  About Us

photobank (6).jpg


photobank (3).jpg

JLSJC is a modern enterprise with its own entity industry and intemational trade capability (logo:JSC)JLSJC has implemented standardization management for many years and has attained ISO9001QMS certification. Main products include graphite electrodesgraphite powdergraphite blocks and other carbon products. All products of JSC meet international quality standards, are exported to Asia, Europe, South America, Africa and other more than 30 countries and regions, enjoy a good reputation at home and abroad.

  Advantage

Advantange

Exhibition Show

  Exhibition

photobank (7).jpg

photobank (5).jpg

Founded in 2004, JLSJC as the solo exporter of  Jilin Songjiang Carbon Plant, after nearly 10 years' stable positive operation and management. Its annual turnover to 150 million yuan, with  more than 20 million US Dollars export amount.

FAQ

  FAQ



 MOQ  1 Metric Ton

 Trade Terms

  FOB; FCA; DAP; CFR; CPT; CIF
 Loading Port  Dalian; Tianjin; Jilin Station; Manzhouli; Main ports,China
 Term of Payment  L/C; T/T;  D/P or CAD
 Supply Capability  1500  Metric Tons / Month
 Package  Packed in wooden cases or as per our clients' request
 Delivery Time  15~45 days since signing contract
 Remarks

  The price above mentioned is only for reference, the   exact price will be subject to our formal quotation.

  If any questions, feel free to contact us at anytime.

Transportation

  Transport


Give full play to the geographical advantage of own manufactory close to the Jilin inland port, from an express way of land and sea departure, have the strong logistics capability, fast and effective delivery, professional loading and reinforce, lower transportation cost, fully ensure products to arrive customer terminal safely and efficiently
